Sewer Manholes and Chambers: Types, design, installation and maintenance
While nearly invisible (only a cover signals their underground presence), sewer manholes and inspection chambers are critical components of wastewater and stormwater systems, allowing for safe inspection, cleaning, repairs and flow monitoring.
Proper design, installation and maintenance of manholes and inspection chambers improve network reliability, reduce operating costs, and extend the lifespan of sewage systems.
This article examines differences between common sewage manhole types, best practices for their design, installation and maintenance, as well as considerations for building sewer systems that last over 100 years. While sanitary sewage is the primary application discussed, many of the principles also apply to manholes and inspection chambers used in combined and stormwater systems.
What is a sewer manhole?
Sewer manholes (also called sanitary manholes or sewage manholes) are underground structures built on sewer lines to provide safe access to buried pipelines, allowing their inspection, cleaning and repair. Modern sewer manholes also accommodate changes in flow direction, elevation changes, and transitions between pipe sizes.
Typically, a manhole consists of a base that connects to the sewer pipe, a vertical shaft or chamber, and a frame with a manhole cover at the surface. Together, these components form a controlled opening into a sanitary or storm sewer network, preventing public exposure to open sewage.
Sewer manhole components |
|
Base |
The foundation of the manhole structure that holds inlet and outlet connections. |
Flow channel (invert) |
A shaped profile located at the lowest point of the base, carrying the wastewater through the manhole. The raised area next to the channel used by operators is called a bench. |
Chamber (riser rings) |
The main vertical structure that allows personnel to reach the sewer. Deep manhole riser rings are equipped with rungs or ladders to ensure safe entry and egress. |
Cone |
The tapered section at the top of the riser rings, transitioning the diameter to a smaller size needed for the frame and cover. |
Frame |
The metal or concrete housing on top of the shaft that supports the weight of the cover and handles traffic loads. Grade adjustment rings (chimneys) can be used to adjust the cover’s height to match the ground level. |
Cover (lid) |
A removable, heavy plate, usually from cast iron, steel, or composite, that seals the top at ground level and prevents people, vehicles, and debris from falling in. |
Why sewer systems require manholes
Without sewer manholes and chambers, inspecting and maintaining underground sanitary sewers would require excavation, making the work slow, disruptive and expensive.
Chambers and manholes fulfill several key functions:
- Ensuring ground-level access for inspecting sewer condition, joint integrity and flow behavior
- Serving as connection points between wastewater or stormwater lines, including pipes installed at various depths or grades
- Accommodating sewer line shifts in direction, diameter or slope
- Providing entry points for maintenance, rehabilitation, and repairs
- Ensuring ventilation and odor control to help sewer gases (such as hydrogen sulfide and methane) vent into open air
Did you know?
The earliest simple manholes date back to as early as 3500 B.C. and were essentially ditches covered with stone slabs or wooden planks.
The first modern manholes date back to the 19th century, when the first European manhole standard was also passed — stating that the structure should have space for a man of average size.
Under the European Standard EN 476, manholes are designed for human entry and therefore typically have an internal diameter of 1000 mm or larger. Manholes with DN/ID from 800 mm to less than 1000 mm may permit personnel access in exceptional circumstances, with appropriate safety equipment.
Smaller structures that don’t provide personnel access and are designed to allow cleaning and inspection equipment to be inserted from ground level are called inspection chambers.
Types of sewer manholes
Not all vertical underground access structures are designed for and suitable for use in sewer networks. Various types of manholes, vaults and chambers are widely used to provide access and service for drainage systems, pressurized water mains, telecommunications and electrical networks and other utilities.
High-quality sewage manholes should meet the following criteria:
· High corrosion resistance as wastewater may contain biological acids and harsh chemicals
· Watertightness preventing groundwater infiltration and sewage water leaks into the environment
· Hydraulically optimized design to ensure smooth wastewater flow, minimizing risks of debris accumulation and clogging
· Simple and fast installation, minimizing labor and risks of errors
· Safe access for inspection, allowing workers to safely enter and exit the structure
· Design flexibility, including availability in different sizes and supporting various outlet and inlet pipe configurations
· Sufficient load-bearing capacity to withstand the intended vehicular traffic loads, soil loads, and groundwater pressure without cracking, permanent deformation or structural integrity failure
Depending on their intended use and design, sewer manholes can be further divided as follows:
Straight-through manholes
Also called straight-run manholes, these structures are located on straight sewer line runs and contain one inlet and one outlet aligned with the flow path. They are mainly used for routine maintenance and inspections.
Junction manholes
Junction manholes connect multiple sewer lines and allow changes in flow direction while maintaining hydraulic efficiency. Branch configurations commonly include 45° and 90° connections with smooth flow profiles designed to minimize flow disturbances and ensure seamless transitions between inlets and outlets.
Drop manholes
Drop manholes, also referred to as cascade manholes, are used when incoming pipes are located significantly higher than outgoing pipes. They are designed to safely manage changes in network elevation while controlling wastewater flow velocity, reducing excessive turbulence and ensuring proper ventilation.
Sewer lift stations
Sewer lift stations are pumping facilities, typically housed in a manhole or chamber, that move wastewater from a lower elevation to a higher one, allowing it to re-enter a downhill gravity pipe. Lift stations are used in flat areas with insufficient natural slope as well as to overcome obstacles, such as ridges or hills.
Terminal or end manholes
Terminal manholes are typically installed at the beginning of gravity sewer lines and have only outgoing connections. Terminal manholes are used for inspections and flushing the line, as solids are more likely to accumulate at the initial segment.
Inspection chambers
Inspection chambers are smaller access structures designed primarily for maintenance and inspection from ground level. Typical sizes include internal flow diameters of 200 mm, 315 mm, 400 mm, 425 mm, and 600/630 mm. Chambers are commonly used in smaller-scale, shallow networks where human entry is not required, such as residential sanitary or storm sewer lines and small commercial developments. Depending on the overall network design, chambers can be installed in place of manholes on long straight runs, junctions and endpoints.
Common sewer manhole issues
Over time, manholes and chambers may develop a range of issues that affect the performance, reliability and environmental safety of wastewater networks:
- Infiltration and inflow result from groundwater or rainwater seeping through cracks, loose joints, or damaged seals. This increases load on treatment plants and raises wastewater processing costs.
- Leaks (exfiltration) are usually caused by cracks in the manhole structure or by pipe connections losing their seal, allowing untreated wastewater to escape and enter the environment.
- Blockages and sediment build-up result from debris or grease accumulating in the channel or at junctions, slowing down or completely blocking the wastewater flow. Accumulation of organic matter can also increase bacterial activity, causing unpleasant sewer odors.
- Chemical degradation and corrosion can affect concrete and other susceptible materials exposed to aggressive sewer environments, including septic wastewater, corrosive industrial wastewater, and insufficient ventilation. In concrete structures, biogenic sulfuric acid attack associated with hydrogen sulfide (H₂S) can progressively deteriorate the material and reduce its service life.
- Structural damage and deformation are commonly caused by heavy traffic loads, soil pressure, groundwater pressure, ground movement, inadequate installation or repeated freeze-thaw cycles. Over time, these factors can lead to cracking, deformation, settlement or loss of structural integrity.
Rehabilitation methods for less severe cases include re-sealing joints, installing protective liners or coatings, and replacing manhole covers. In more severe cases, full replacement of the manhole structure is often recommended, as repairs must restore watertightness and structural integrity while preserving safe access for operators.
Urban wastewater management: legislation Changes
The EU revised Urban Wastewater Treatment Directive, which entered into force on January 1, 2025, tightens requirements for Member States regarding sewage collection, storage and treatment.
The revised Directive places stronger emphasis on addressing overflows and discharges of polluted wastewater and calls for tighter control and leak-proofing of even small-sized urban wastewater networks, as well as their regular maintenance and inspection.
"Across Europe, many cities still rely on combined sewer systems that are more prone to flooding and overflows and add increased load on treatment plants. The current trend is to modernize these networks, separating sanitary sewage and stormwater lines," says Oliver Bannert, Business Development Manager of Soil and Sewage at Pipelife.
Materials used in sewer manholes
Historically, sanitary manholes were built from concrete or brick on construction site, which was a complex and time-consuming process. Today, technologies and materials have evolved, and common options include precast concrete, plastic and fiberglass manholes.
- Precast concrete manholes are highly durable, resistant to buoyancy and often have lower upfront costs. However, they are more difficult to handle on site and are susceptible to corrosion, increasing the risk of leaks over time. Depending on wastewater properties, concrete can degrade within 15 to 30 years.
- Plastic manholes (typically made from PP, HDPE or PVC) offer long service life with minimal maintenance because of their corrosion resistance and watertightness, even in aggressive environments. Their lighter weight also makes them easy to handle on site without cranes or other heavy machinery. However, specification of thermoplastic manholes requires close attention to local groundwater levels and load-bearing requirements. High-quality plastic sewer manholes serve 50 to 100 years.
The material choice depends on soil conditions, groundwater level, wastewater characteristics, traffic loads, as well as local standards and regulations, explains Karol Marzejon, Water Infrastructure Solutions Manager at Pipelife Poland:
“Precast concrete manholes are often considered when lower upfront costs and the possibility to easily produce large dimensions are key considerations. In contrast, thermoplastic manholes are preferred for projects that prioritize faster installation, minimal maintenance and a longer service life.”
Comparison of concrete and plastic sewer manholes |
||
Pros |
Cons |
|
Precast concrete manholes |
• High structural strength and suitability for demanding loads • High self-weight, providing inherent resistance to buoyancy in high water tables • Easy modeling for various designs • Generally lower upfront material costs |
• More time-consuming and physically demanding installation requiring heavy machinery • High corrosion vulnerability requiring liners, coatings and/or more frequent rehabilitation • Rigid construction and higher joint shift and leak risks over time due to ground movement • Higher sediment and blockage risks due to porous material • Higher environmental impacts associated with concrete production and energy-intensive transportation and installation processes |
Plastic manholes |
• Fast and efficient installation due to lighter weight and preassembly before delivery • High resistance to corrosion and aggressive wastewater environments, even against sulfuric acids • Watertightness due to hermetic pipe connections • Higher flexibility and crack resistance under shifting soils and ground movement • Excellent hydraulic performance due to smooth, non-porous inner surfaces and high abrasion resistance • Long service life, ranging from 50 to 100 years |
• Generally higher upfront material cost • Higher susceptibility to buoyancy if not properly anchored or backfilled • Structural performance relies on proper installation and interaction with the surrounding soil, making correct backfilling and compaction essential |
Comparison of installation efficiency: Plastic and precast concrete manholes
A test performed by TEPPFA (The European Plastic Pipes and Fittings Association) in 2013 compared the installation speed of a 90-meter sewer pipe system featuring two manholes laid at a 2-meter depth when using the Pipelife PRO system versus precast concrete chambers and pipes.
The precast concrete system required 5 hours 12 minutes to install, whereas the plastic system was installed in 3 hours 19 minutes, resulting in 30% time savings.
Sewer manhole design and specifications
Specifying sewer manholes requires careful evaluation of required dimensions, load capacity and environmental conditions to ensure reliable service.
Hydraulic aspects are equally crucial, as manholes must not interrupt continuous, self-cleansing velocity within sewer lines while addressing diameter and elevation changes and shifts in direction.
Pipelife offers a wide range of thermoplastic sanitary sewer and stormwater manholes, produced using injection molding, spiral-welding, rotomolding and even 3D printing technologies. Complementary design service is available to all customers.
"The process always starts with specifying manhole dimensions, spacing and the required connections to inlet and outlet pipes," explains Marzejon. "Next, we assess on-site conditions, such as expected traffic load, groundwater levels, soil type, sewer system type, wastewater properties, installation restrictions and so on. We use specialized software to simulate how the structure would react to real-world forces and impacts to identify the best solution."

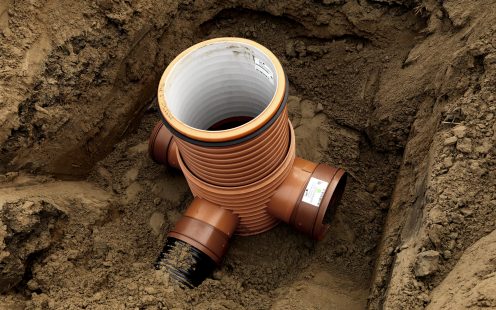

Pipelife PRO manholes and inspection chambers: Industry-leading wastewater solution
Pipelife has more than three decades of experience in manufacturing high-quality manholes and chambers that are widely used across Europe. Pipelife PRO range includes polypropylene (PP-B) chambers ranging from 200 mm to 630 mm and manholes in 800 and 1000 mm sizes. The system supports seamless connections with pipe sizes from 110 mm to 400 mm.
The PRO system is widely used for both new installations and rehabilitation of:
- Domestic and public stormwater systems
- Public and commercial sewer networks
- Road drainage networks
- Combined sewer systems
- Industrial and chemical wastewater networks
- Agricultural production facilities
Pipelife PRO manholes and chambers are safe to use in various soil and groundwater conditions and designed to withstand extreme temperature fluctuations while exhibiting outstanding impact resistance. PRO manholes are ideally suited for PVC, PP pipes and Pipelife's Pragma PP-B sewer pipe system; however, they can be used in rehabilitation and extension of sanitary sewers from other materials, such as clay and concrete.
“Pipelife PRO manholes and inspection chambers provide a modern solution for sewer and drainage networks,” says Marzejon. “Their design, material properties and wide range of configurations can offer practical and technical advantages over other plastic chamber solutions, depending on the application and specific project requirements.”
Advantages of Pipelife PRO manholes and chambers
- High load capacity (suitable for traffic areas with covers up to Class D400), ensuring reliable performance even in heavily trafficked areas
- Excellent resistance to corrosion and suitability for aggressive wastewater environments according to ISO/TR 10358 and ISO/TR 7620 international standards
- Suitability for deep installations up to 6 meters
- Complete watertightness and resistance to groundwater up to a water column of 5 meters
- Excellent hydraulic performance and resistance to sediment buildup due to a very low roughness coefficient, even after years of service
- Fast and efficient installation due to a lower product weight and a wide range of compatible fittings

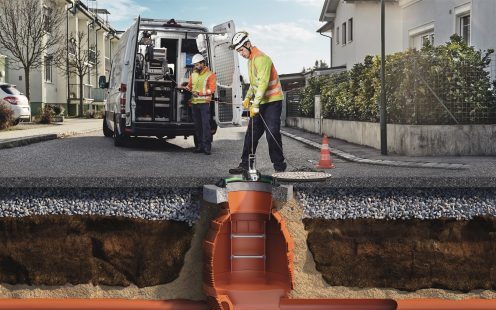

- Simple maintenance, as cleaning can be performed using high-pressure methods up to 120 bar
- High abrasion resistance ensuring service life of 50-100 years
- Resistance to freeze-thaw cycles and suitability for low-temperature installations down to -10°C
- High flexibility and excellent crack resistance and suitability for challenging soil conditions

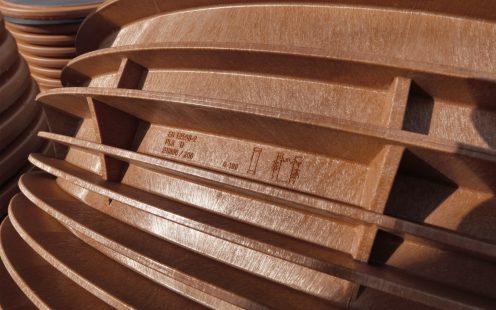

- Stable interaction with the surrounding soil, with external ribbing helping to anchor the manhole and maintain its position under changing ground and groundwater conditions

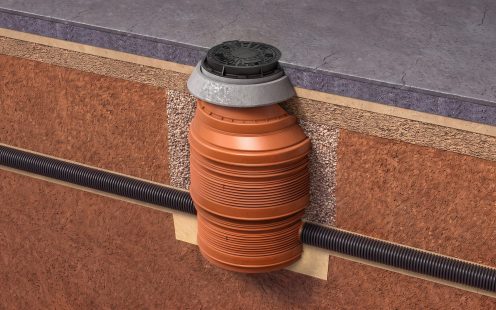

- Flexible telescopic cover solution, accommodating vertical movements caused by traffic loads, settlement and seasonal ground conditions while reducing direct loads on the manhole structure
- High operator safety, featuring a corrosion-resistant, slip-proof ladder pre-installed in all deep manhole designs
Conclusion
Europe’s underground infrastructure is increasingly in need of modernization, driven by stricter legislative requirements and growing expectations for operational performance, reliability, and safety. In this context, wastewater and stormwater manholes are far more than simple access points: they have become key operational assets that enable inspection, cleaning, maintenance, rehabilitation, and the long-term management of sewer networks.
Advances in thermoplastic technology have reshaped manhole design and performance, offering improved corrosion resistance, hydraulic properties, durability, watertightness and installation efficiency. As sewer networks evolve, these solutions play an important role in building more resilient, reliable, and future-ready underground infrastructure, says Bannert:
“Pipelife is well positioned to support the modernization of sewer infrastructure with advanced solutions. Our PRO manhole and chamber system is an integral part of this offering, providing a reliable and versatile solution for today’s infrastructure needs.”
Sewer manholes: Frequently asked questions
1. WHAT CAUSES SEWER MANHOLE ODORS?
Sewer manhole odors are caused by the growth of sulfate-reducing bacteria, which produce hydrogen sulfide (H₂S) under anaerobic conditions. H₂S formation and release are influenced by factors such as wastewater retention time, temperature, pH, flow conditions and organic matter content. The issue is more common in compromised sections affected by blockages and insufficient wastewater flow.
High-pressure cleaning can help clear accumulated organic matter and restore wastewater flow. Recurring odor issues typically require rehabilitating compromised sections to improve flow and minimize sewer gas production.
2. HOW TO CLEAN SEWAGE MANHOLES AND CHAMBERS?
High-pressure water jetting is the most efficient method for removing accumulated solids. Industry experience shows that larger water volumes at lower pressures can clean sanitary and storm sewer lines more effectively than extremely high-pressure systems with lower flow rates.
Recommended pressure-cleaning ranges for Pipelife's thermoplastic manholes, chambers and pipes are:
- 60 bar for light deposits
- 80-120 bar for heavier obstructions
- 6 m/min to 12 m/min flushing speed
3. HOW TO SELECT SANITARY SEWER MANHOLE COVERS?
Manhole cover and lid weight classes are determined by static load capacity, following the EN 124 standard, and range from A15 to F900:
- A15 (15 kN): light-duty covers and lids for pedestrian-only areas such as paths, green spaces, patios
- B125 (125 kN): medium-duty covers, including private parking spaces, home driveways and pedestrian areas requiring occasional vehicle access
- C250 (250 kN): medium-to-heavy duty manhole covers for roadsides, low-traffic areas, small parking lots
- D400 (400 kN): heavy-duty manhole covers for large public parking lots, regional and national roads and highways
- E600 (600 kN): extra heavy-duty covers suitable for heavily trafficked industrial and commercial areas
- F900 (900 kN): extreme-heavy-duty manhole covers used for shipping docks, airport runways and specialized industrial settings
Pipelife offers design and specification services for manholes and chambers, including appropriate cover weight class selection as well as manhole cover customization.
4. WHY ARE SEWER MANHOLE COVERS ROUND?
Manhole covers are round primarily for safety reasons — a circular cover cannot fall through its opening and has no weak points or corners that would be more susceptible to traffic impacts. The round shape also makes manhole covers easy to move by rolling them aside when maintenance is needed.
5. WHAT IS PP-B?
PP-B (polypropylene block copolymer) is a high-grade thermoplastic material produced by copolymerizing propylene with ethylene to create a heterophasic structure with enhanced impact resistance.
Pipelife PRO manholes and Pragma sewer pipes are made from PP-B due to the material's superior impact-, temperature- and corrosion resistance compared to traditional alternatives, such as concrete.
6. WHAT SEWER PIPES ARE PIPELIFE PRO MANHOLES COMPATIBLE WITH?
Ideally, PRO manholes and chambers are paired with PP-B and PVC, PP pipe systems. Transition fittings are available for cases when the PRO system is connected to a sewer network section made of other materials.
7. ARE PIPELIFE PRO MANHOLES ALSO SUITABLE FOR STORMWATER SYSTEMS?
Yes, the Pipelife PRO range is widely used in combined sewage- and separate stormwater systems. For stormwater systems, the portfolio also includes sedimentation manholes and chambers that provide pre-treatment by capturing sand, suspended solids, and other particulate contaminants.
In addition, Pipelife offers design services for stormwater solutions in line with European and national regulations to achieve maximum drain capacity and prevent overflow and flooding risks.
8. DOES PIPELIFE SUPPLY MANHOLE COVERS AND LIDS?
Yes, Pipelife's portfolio includes a wide range of composite (GRP) and cast iron covers and grates in weight classes A15-D400.
GRP covers offer a lightweight, corrosion-resistant alternative to cast iron, while providing easy installation, good durability and a tight fit that helps minimize stormwater inflow and odor escapes.
