Roofline, Window & Cladding Systems
PVC-UE ROOFLINE & WINDOW SYSTEMS
Pipelife Roofline and Window extrusions are manufactured on state of the art machinery and extrusion dies in the group’s Cork plant, which has over 40 years extrusion experience behind it.

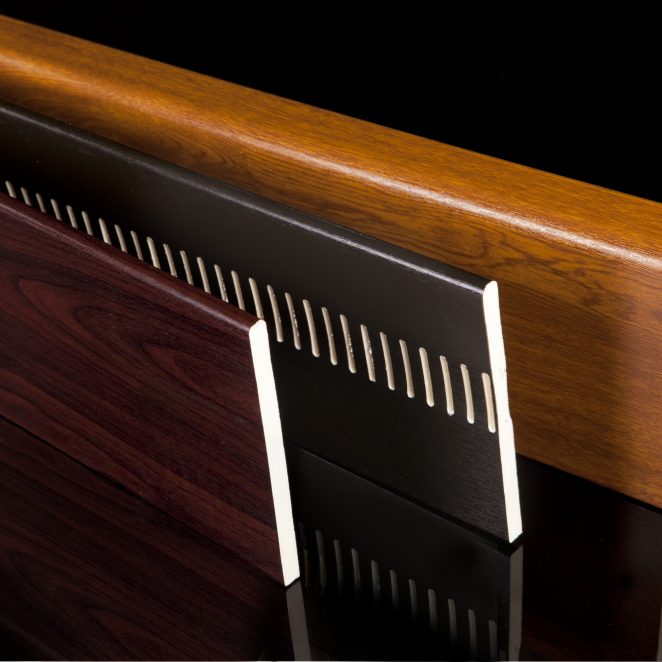

Pipelife boards offer a complete low maintenance solution to both Roofline and Window Systems construction. The tough impermeable outer skin of our foam boards provides year-round protection from both the weather and insect infestation. A range of products are also available with laminated woodgrain finish.
Pipelife systems come with a 20 year Performance and Colour Guarantee on white cellular products and 10 years on foiled products.
Pipelife operates quality and environment management systems which have been assessed by BSI and comply with the requirements of both BS EN ISO 9001:2008.
Fire Resistance
They do not burn freely and outperform timber in a fire. The materials are not easily ignitable and have a Class 1 fire rating in accordance with BS476 : Part 7 1997.
However our board certificate states:
7.1 When tested in accordance with BS 476-7 : 1997, the multi-purpose board achieved a Class 2Y surface spread of flame rating; all other boards are expected to be similar, except the hollow soffit which achieved a Class 1Y rating.

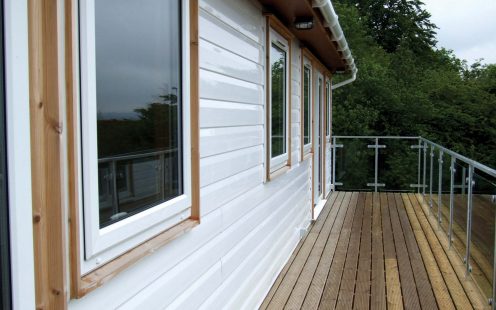

The cladding states:
7.1 The system achieved a reaction to fire classification* of D-s3, d2/(AHM) to BS EN 13501-1 : 2007.

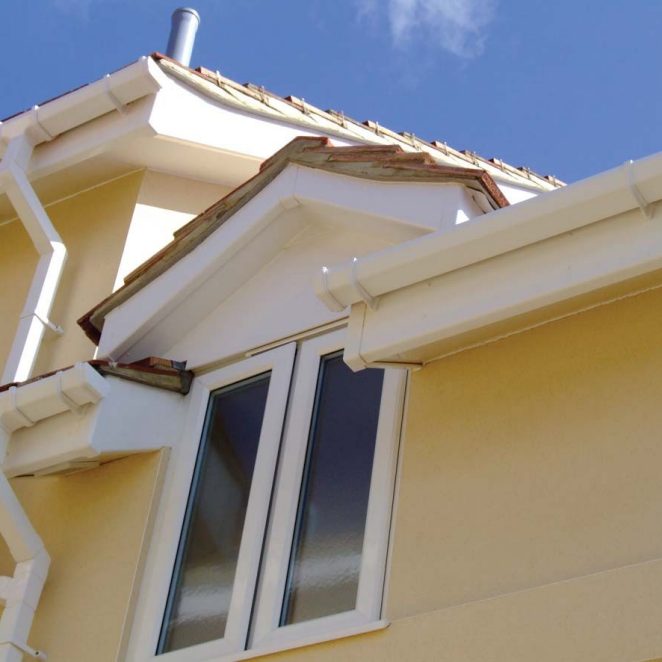

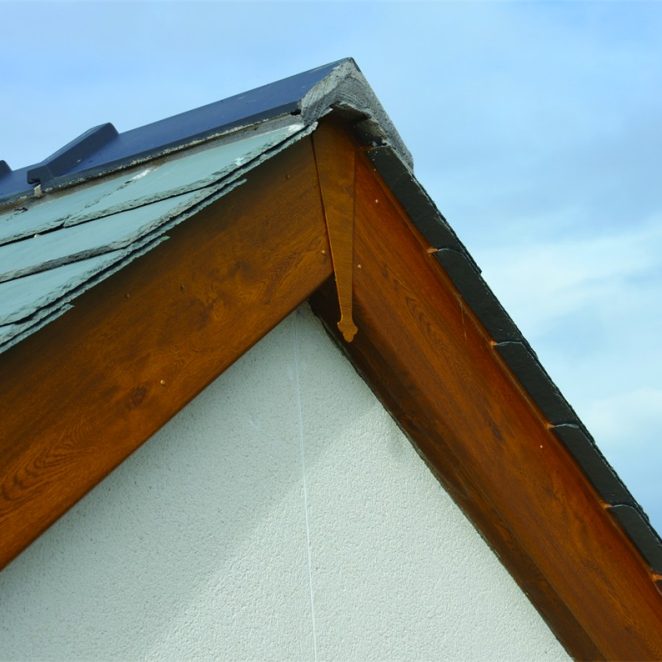

Fascia, Soffit, Bargeboard and Trims

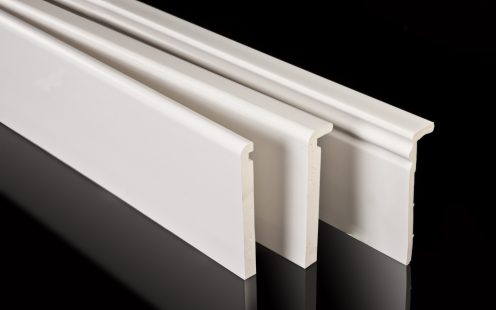

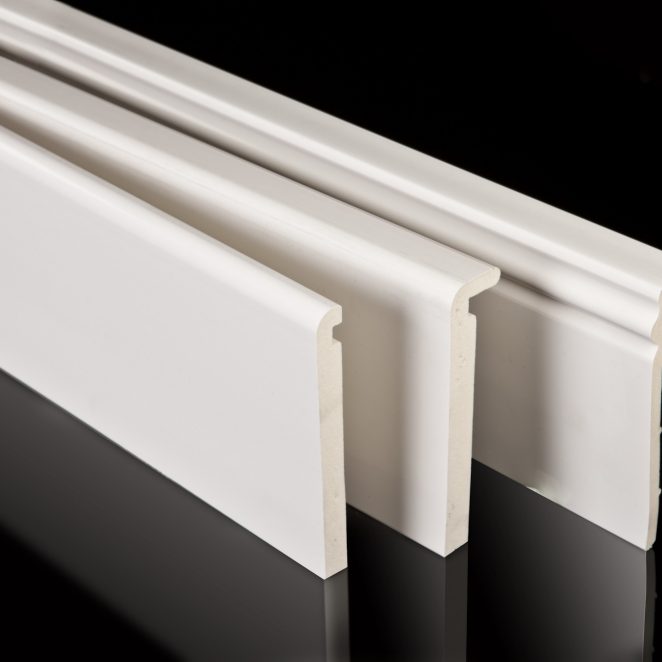

Pipelife offer a range of Fascia Boards for use in both new build work, total replacement or refurbishment by covering existing timber. The range of fascia profiles comprise:

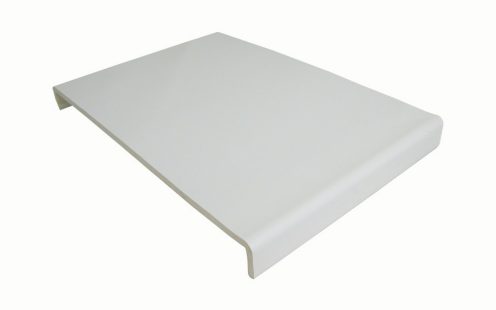

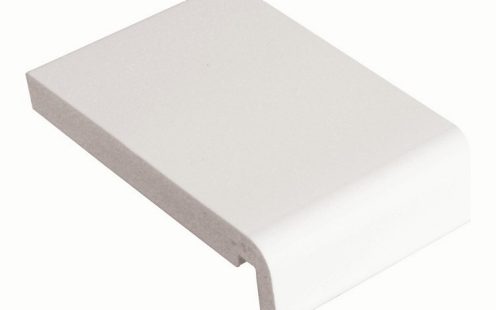

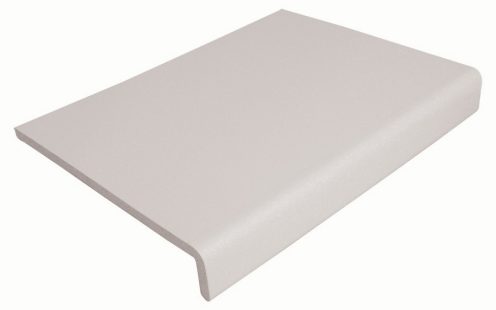

- A traditional 9mm Universal Board which requires a backing board.

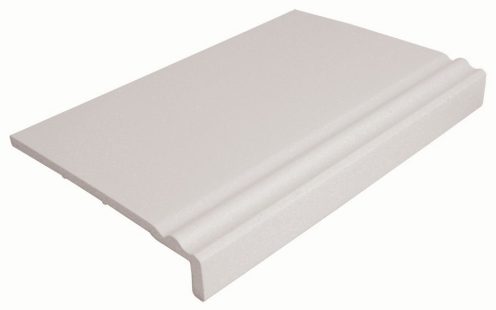

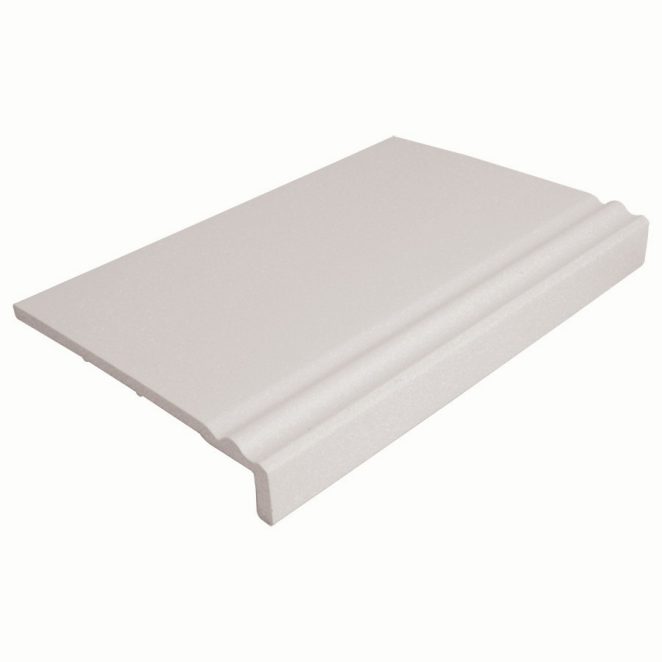

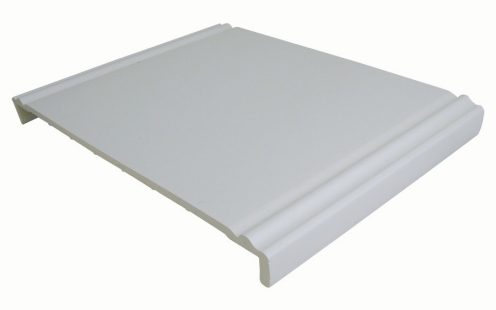

- An Ogee Fascia Board which offers an attractively designed alternative to the Universal Board.

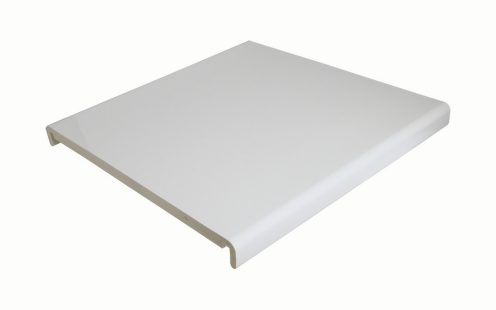

- An 18mm Mammoth Board which does not require a backing board to support it, because of its rigid linear strength, and thickness. This makes it extremely suitable for total replacement and new build applications when it is fixed directly to the rafter ends.

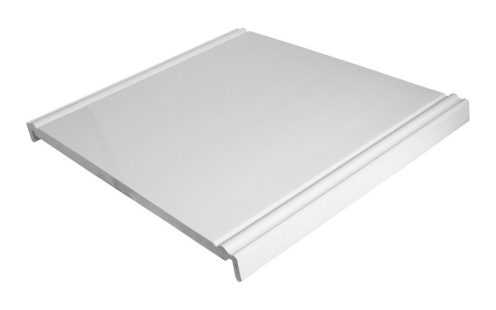

- Ogee Mammoth Board which again offers the attractive alternative to the plain mammoth board.
A range of matching PVC-U mouldings caters for all joints and corners.
Soffits can be formed using a number of options:
- Multi-Purpose Board up to a width of 600mm combined with Soffit Vent Strip or Circular Disc Ventilators.

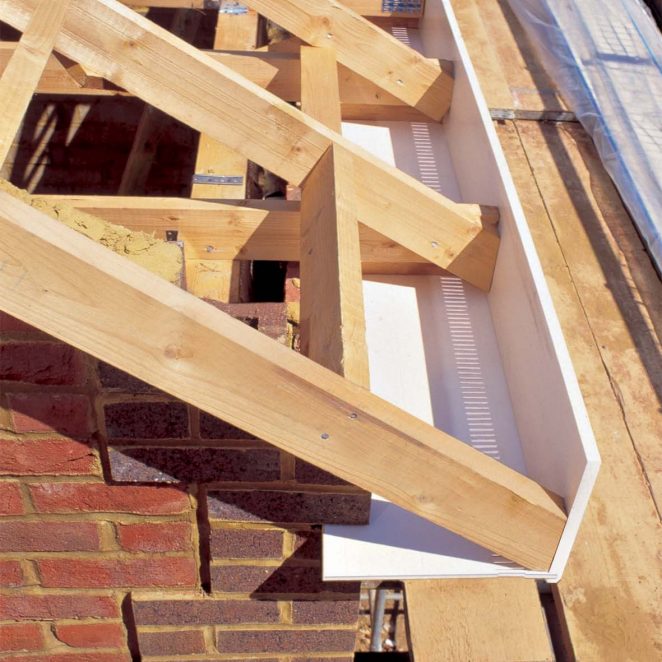

- Pre-vented Soffit Board with air slots to provide ventilation to a 10mm or 25mm wide clear air gap, which conform to current building regulations.
- Cladded Soffit using the 150mm Shiplap Cladding or 100mm V Joint Cladding to give an attractive ribbed effect.

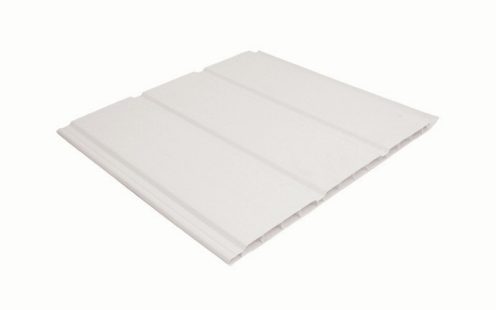

- Rigid PVC-U Hollow Soffit in 300mm widths provide a cost competitive and effective alternative to cellular boards. These should not be used as an external cladding system.
