Domestic Channel Drainage

110mm Domestic Channel Drainage

Our Channel Drainage is a 110mm Domestic Channel Drainage System that can be applied around many areas where surface water collects.


Channel Drianage APPLICATIONS:

  • Driveways and pathways
  • Patios and conservatories
  • Swimming pools and sports areas
  • Gardens and water features
  • Retaining walls

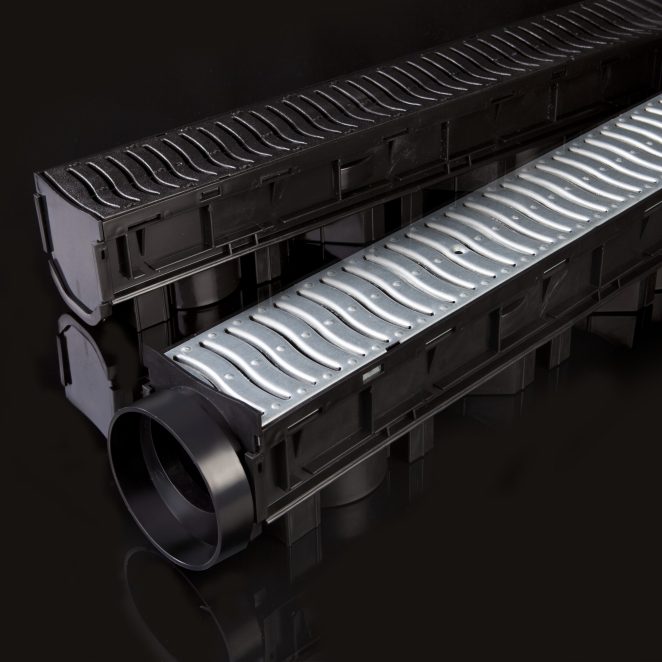

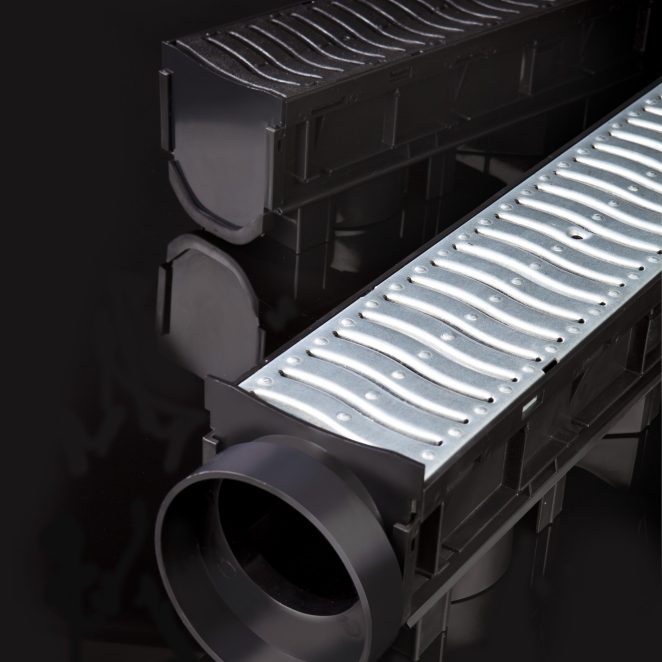

The system is available in 1 metre black lengths and the plastic version is manufactured from a 100% recycled plastic material and provides a strong and reliable solution for domestic surface water drainage. The cross-braced design provides added rigidity and the concave shape of the system enables the quick and easy flow of surface water into the drainage system.


FloDrain has the benefit of a heel guard grate incorporated into the design of the product. In addition, the grate has a slip resistant finish that provides additional grip in all weather conditions and reduces the chances of slipping. Additional features include an easy to use channel-to-channel locking system that allows the user to securely click multiple channels into place for easy assembly and handling. The channel features three outlet connections underneath the base, together with additional options at each end of the channel. These five possible outlets for connection allow added flexibility for the user when installing.




Channel Drainage Features

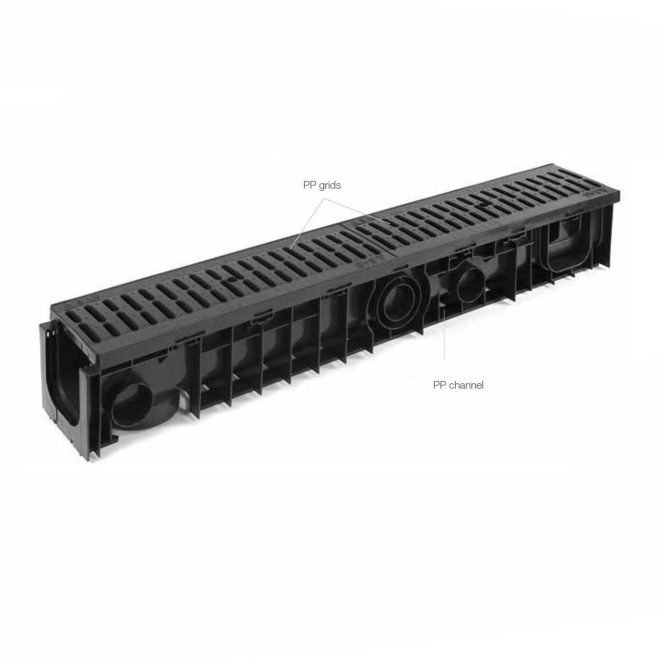

  • Quality domestic surface Channel Drainage 110 x 100mm
  • Anti-slip heel guard rating
  • Garage Pack available, see above
  • 1.5 tonne point load, 5 tonne spread load
  • Manufactured to meet the BS EN ISO9001 quality standard and conforms to BS EN 1433
  • 4 outlets per length for maximum flexibility

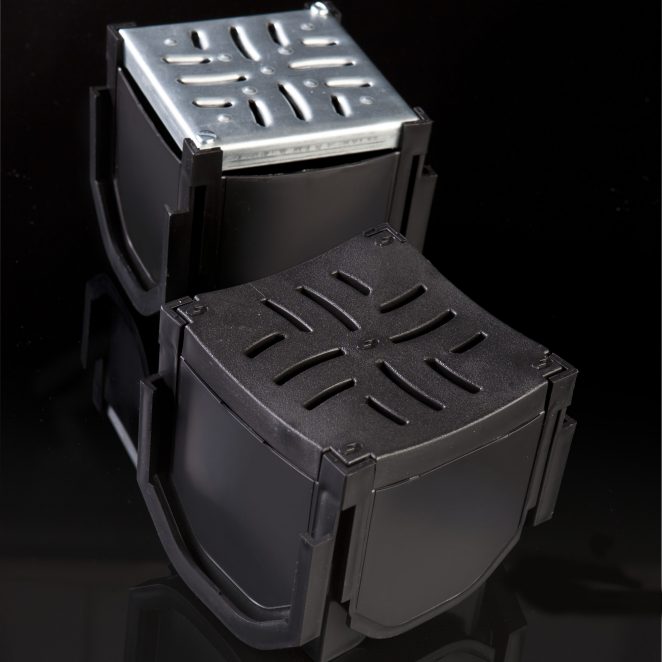

  • Quad section for corners and junctions
  • Concave grid for maximum flow
  • Available with both Plastic Grate (D700) and Galvanized Grate (D701)


Contact Us

Get in touch with us and we will make sure to answer all your questions


Related product systems

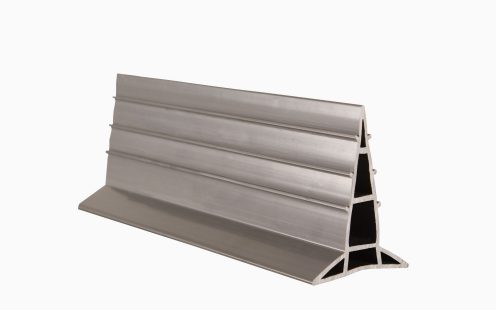

Expansion Joint for Concrete

Expansion Joint for Concrete

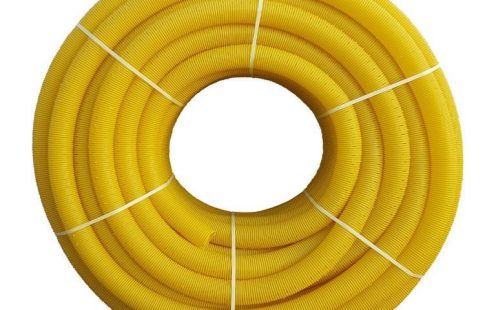

Land Drainage Pipe
