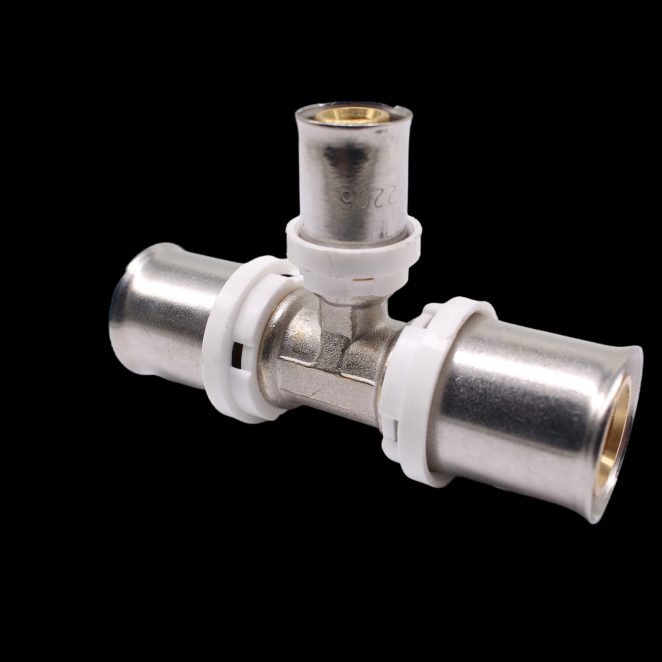

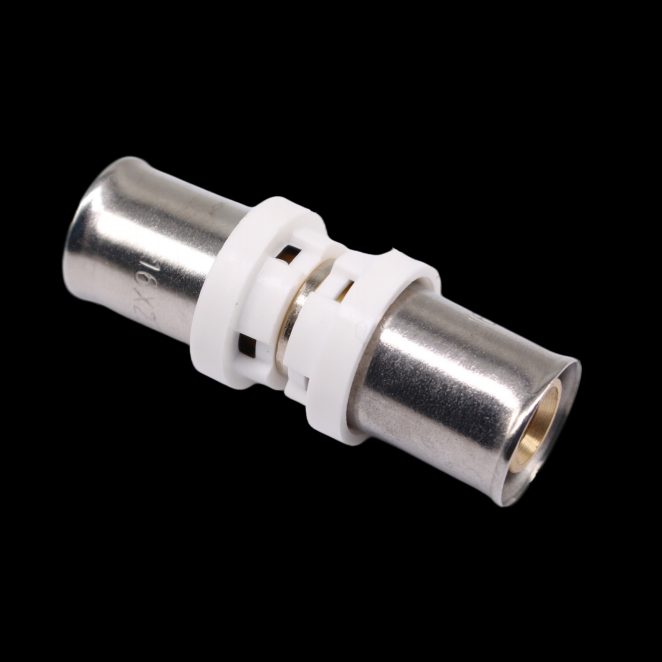

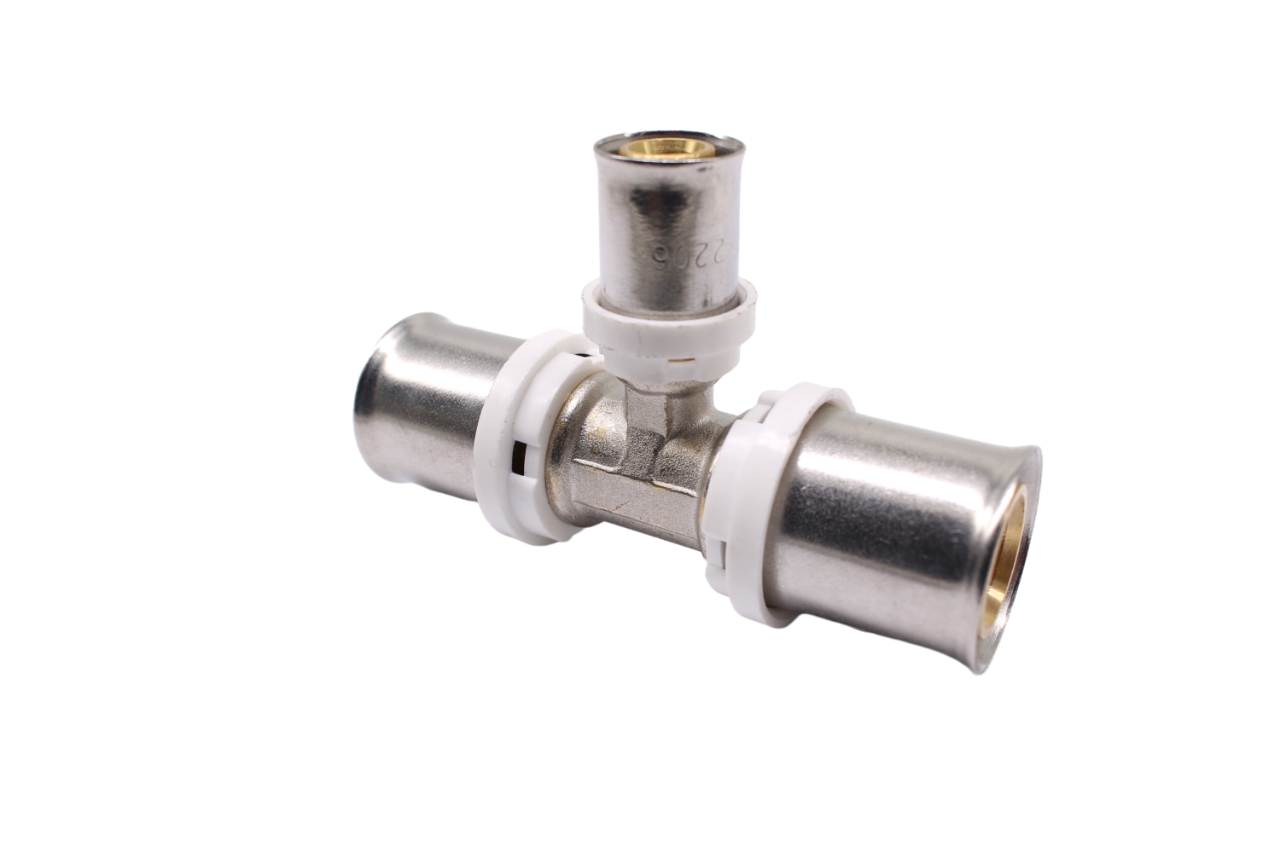

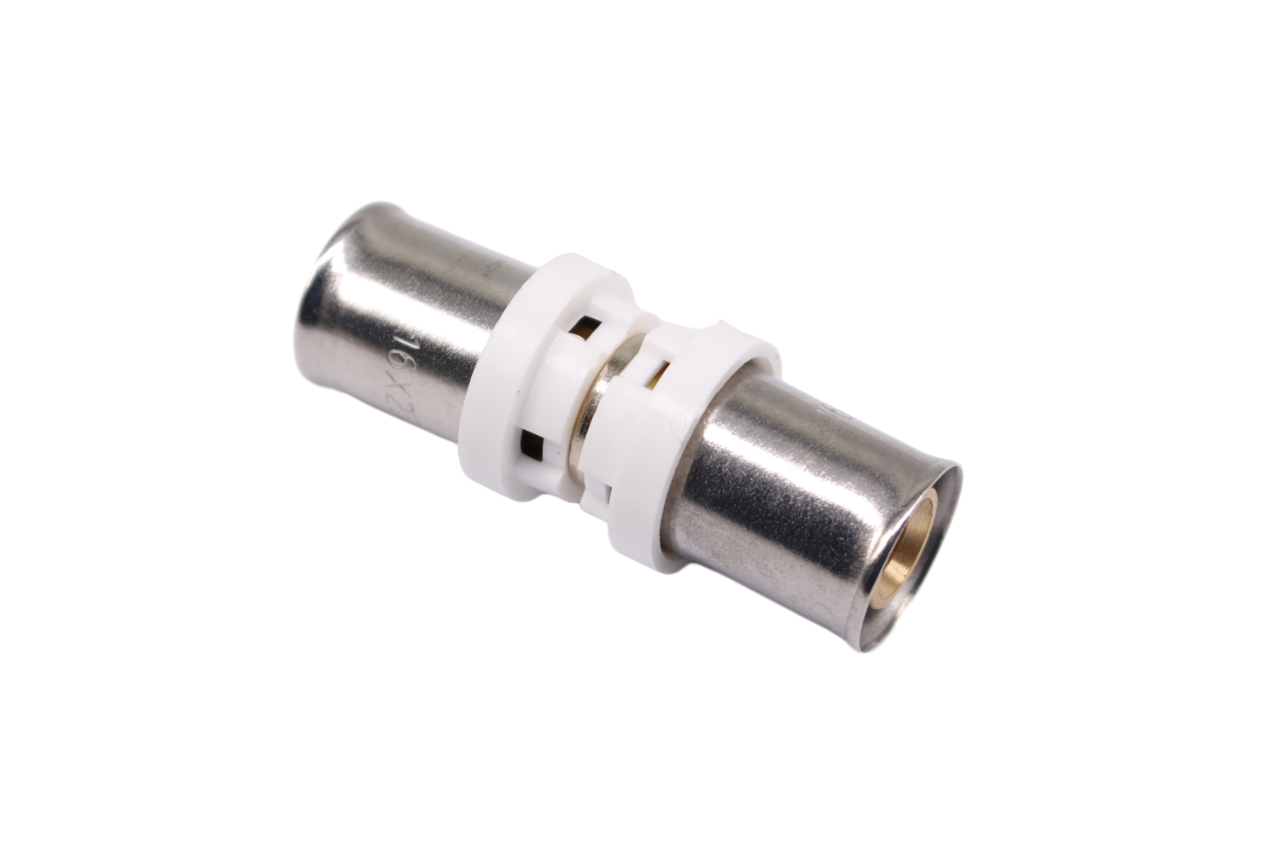

Qual-Pex ML PRO Fittings

Thousands of Connections can’t be wrong!

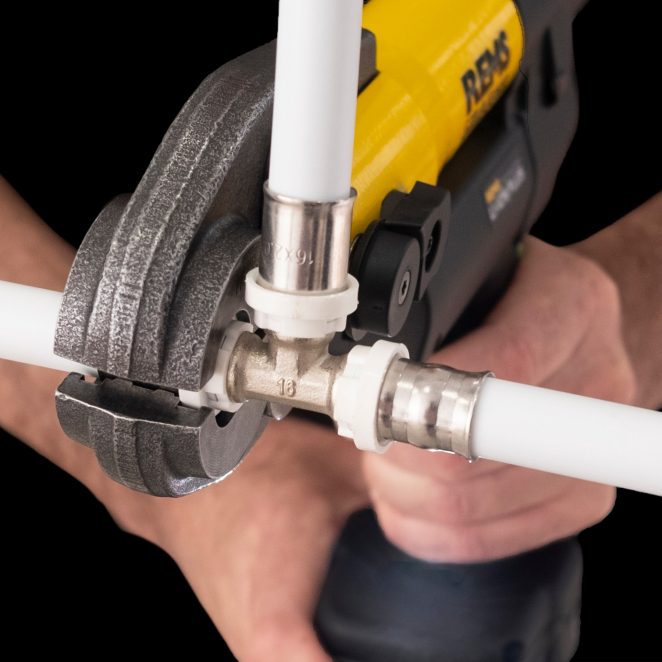

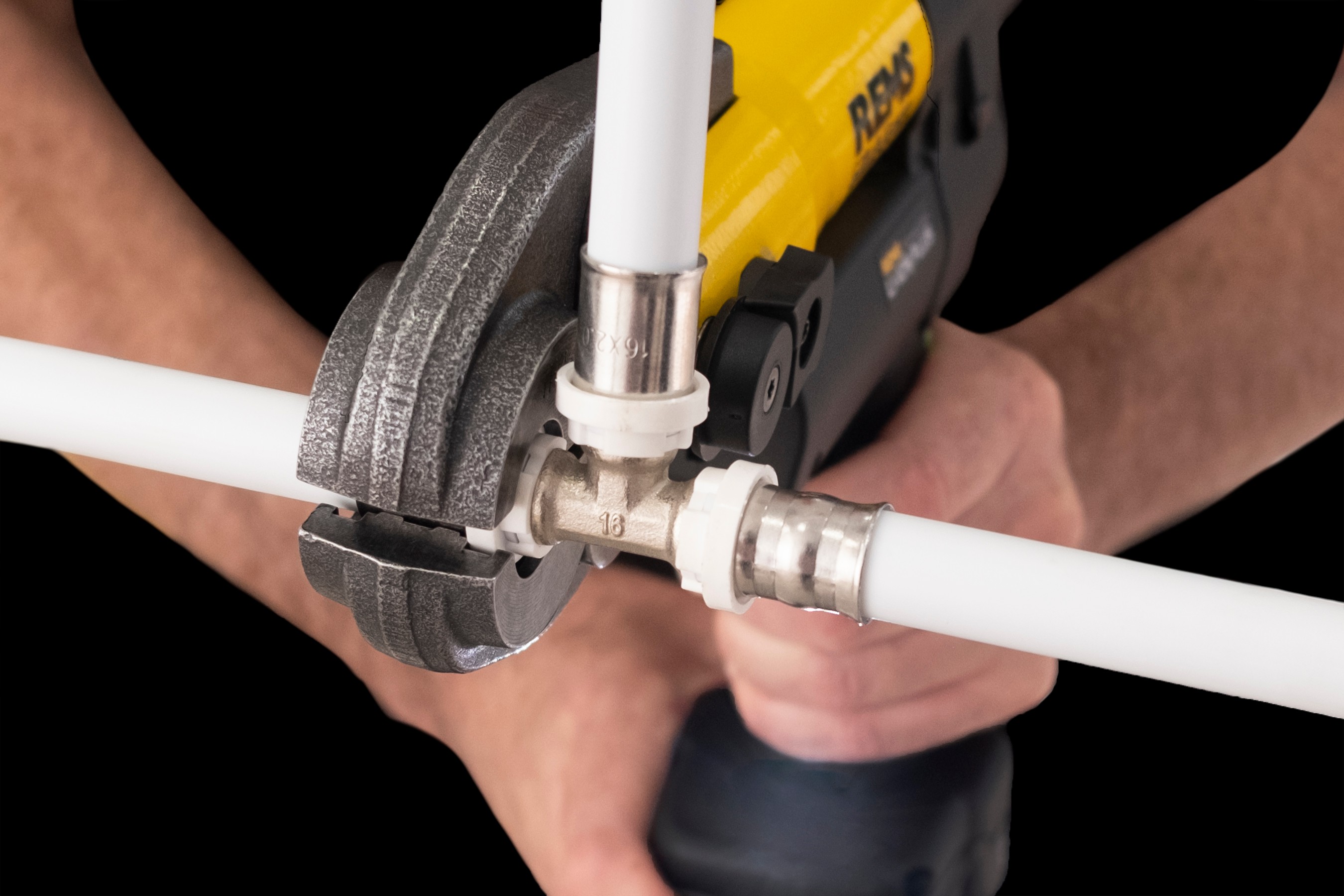

Every fitting feature two EPDM O rings on each connection which, when pressed correctly, delivers a water-tight seal in seconds. Quick to install in three simple steps – Cut, Calibrate & Press, saving on time and costs as less fittings are required when compared with traditional plumbing methods.

Qual-Pex ML PRO Fittings are designed for use in sanitary water supply and heating systems.

• Max Operating Pressure: 10 bar

• Max Operating Temperature: 95°C

• Max Peak Temperature (at 1 hour): 110°C

• Brass body manufactured from CW617N brass to EN ISO 21003

• Suitable for use with the following pipes:
•             Aluminium plastic composite /PE-X /PE-RT / PB/ Steel plastic composite
•             Manufactured as standard for use with Aluminium plastic composite pipe.

• Operating Temperatures 0°C to 110°C

• 304 Stainless Steel sleeves

• Application class: 2/6 bar, class 5/6 bar

• Sizes: 16mm, 20mm, 26mm & 32mm

• WRAS Approved

• TH profile

• EPDM O-rings
