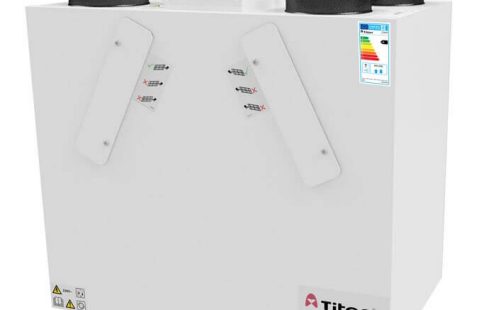

Titon HRV1.6 Q Plus

The enhanced capacity HRV1.6 Q Plus continuously running whole-house ventilation unit with heat recovery is independently tested by the BRE maintains an ultra compact size despite its improved results.

Combining extremely low power consumption and a highly efficient heat exchanger, this unit enhances SAP performance via Appendix Q, and yet remains versatile enough in size to be equally as functional in larger apartments as it is in medium to large sized dwellings.

CORE FEATURES

• Highly versatile compact unit
• Extremely low Specific Fan Power; down to 0.49 W/l/s
• Highly efficient heat exchanger; up to 89%
• Airflow up to 100 l/s (359m3/h) at 100 Pa.  Enthalpy airflow up to 88 l/s (317 m3/h) at 100 Pa
• Accepts 125mm ducting no adaptors required
• Intelligent frost protection, stepped reduction of supply air rates prevents HRV unit from freezing
• ISO Coarse 55% (G3) filters as standard with ISO Coarse 60% (G4) as an option
• Fully adjustable boost overrun timer 0-60 minutes; can be used with non-latching (momentary) switches to prevent unit from being accidentally left in boost mode
• Volt free switching control
• Intelligent controller, quick and easy to commission
• Lightweight for easy handling
• Quick fix mounting bracket
• IP32 rating
• Effective in reducing pollutants in the home and improving Indoor Air Quality (IAQ), therefore reducing the risk of Toxic Home Syndrome
• Dimensions: 600mm wide x 505mm high (excluding ports) x 353mm deep (363mm with mounting bracket).
