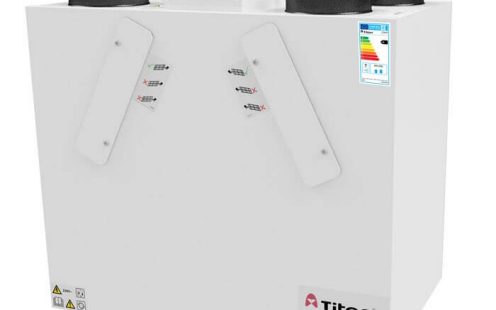

Titon HRV 4 Q Plus

Introducing the new HRV4 Q Plus: a powerful yet compact, continuously running whole-house ventilation unit with heat recovery. It is suitable for larger dwellings and has been independently tested by the BRE. The HRV4 Q Plus delivers cutting-edge performance usually only associated with much larger and more expensive products.

The combination of very low power consumption and a highly efficient heat exchanger is specifically designed to enhance SAP performance via Appendix Q, yet small enough to be easily incorporated into medium sized dwellings.

CORE FEATURES

• Extremely low Specific Fan Power; down to 0.38 W/l/s
• Highly efficient heat exchanger; up to 91%
• Airflow up to 123 l/s (443 m3/h) at 100 Pa
• Intelligent controller, quick and easy to commission
• Fully adjustable boost overrun timer 0-60 minutes; use with non-latching (momentary) switches to prevent unit from being accidentally left in boost mode
• Accepts 150mm and 160mm diameter ducting, no adaptors required
• Intelligent frost protection (B2 and HMB), stepped reduction of supply air rates prevents HRV unit from freezing (B2 model only)
• Setback facility to reduce ventilation where local regulations allow
• ISO Coarse 85% (G4) filters as standard
• Quick fix mounting bracket
• IP32 rating
• Patented
• Independent fan adjustment
• Effective in reducing pollutants in the home and improving Indoor Air Quality (IAQ), therefore reducing
• Intelligent Summer Bypass & humidity controls
• SUMMERboost® facility
• Dimensions: 600mm wide x 602mm high (excluding ports) x 477mm deep (487mm with mounting bracket)
